Technology Jet Cooling Tower

  • In Jet tower air current is produced by Jet Effect
  • Jet nozzles are placed at the top of the tower
  • When water comes out of nozzles, it pushes surrounding air downwards by Jet effect
  • This air is drawn out of tower from the bottom, through side eliminators (louvers)

Principle of Operation of Jet Cooling Tower

  • Jet Cooling Towers work on Water Jet principle.
  • So when water comes out of Jet nozzles, it pushes the air below it, creating a low pressure zone.
  • Hence surrounding air tries to rush in and air current from top to bottom is established.
  • When water comes out of nozzles, it pushes surrounding air downwards by Jet effect.
  • Exit air is drawn out of tower from the bottom, through side eliminators (louvers).

ADVANTAGES

  • Huge Fan power saving
  • Very few components
  • Very less civil works
  • Modular Constructions
  • Easy to shift & expand
  • Component level maintenance possible
  • No need of Lubricant Oil
  • No electrical power cable
  • No heat generation due to friction
  • No fire hazards

MERITS OF JET COOLING TOWER

  • No special mechanical device like fan / blower is required for air circulation
  • As water is sprayed, tower becomes spray filled, hence nothing like pack or fills is required
  • Construction is modular so expansion is very easy
  • Single tower can be used for multi-application
  • 100 % fan power is saved.
  • Practically zero maintenance

END USER FRIENDLY

  • Cooling Tower will never collapse.
  • Can handle contaminated water.
  • Can tolerate Algae growth.
  • Can handle water with dissolve matter.

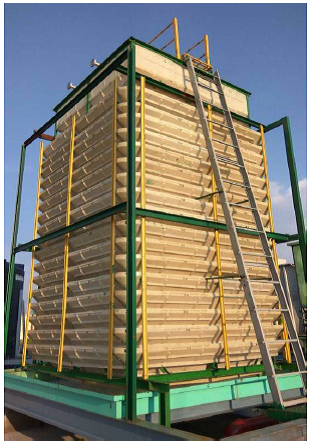

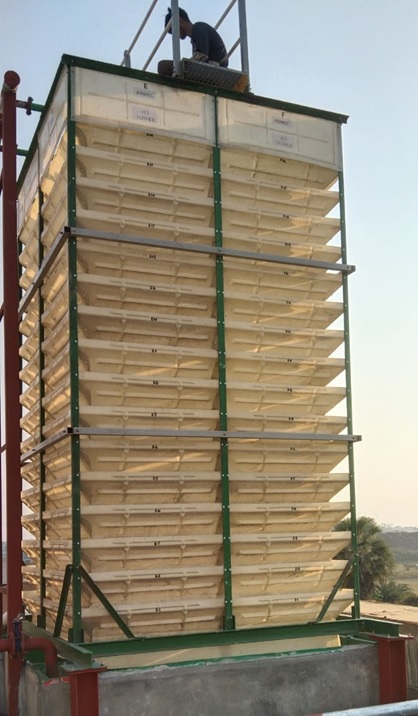

Jet Cooling Tower- Structure

  • Jet Cooling Tower is made of non corrosive material using FRP.
  • Louvers: moulded FRP.
  • Structure: MS sections are lined with FRP.
  • Nozzles: Nylon 6. Industrial plastic.
  • Nut Bolts: Glass filled Nylon
